Introduction

Plane Stress
The concepts of plane stress and plane strain mechanics are integral to the analysis of 2‑D linear elastic problems, particularly those involving fracture mechanics. The terms relate to the stress and strain states within a 2‑D plane and indirectly specify which quantities are zero perpendicular to it.

The plane stress condition applies when all loads and stresses are contained within a 2‑D plane. This occurs in the 'real world' when objects are relatively thin. The plane strain condition applies when all displacements and strains take place in a 2‑D plane. This occurs when objects are thick.

Plane stress and plane strain conditions are limit-case idealizations that are rarely met in a rigorous way by actual engineering problems. Nevertheless, many scenarios do come sufficiently close. As always, the final decision as to which case, if either, applies to a given problem is dependent on the engineering judgment of individuals performing the analysis.



Thin Wall Pressure Vessels

A prime example of a plane stress analysis condition is a thin wall pressure vessel. Pressurized tanks comprise loading scenarios in which plane stress assumptions can be accurately applied even though the loading conditions are neither rigorously plane stress, nor even 2-D planar. This demonstrates the robust applicability of the analysis assumptions. Indeed, they can be applied to a greater number of engineering problems than one might initially think possible. The same goes for plane strain analyses as well.

The figure shows a cross-section of a pressurized tank of radius, \(R\), and thickness, \(t\). The hoop stress in the tank is given by

Pressurized Tank
\[ \sigma_\text{hoop} = P \left( R \over t \right) \]
The radial stress through the tank's thickness is \(\sigma_\text{radial} = -P\) on the tank's interior surface and its magnitude decreases through the wall to zero at the exterior surface. (The radial stress value increases algebraically from \(-P\) up to zero. But its magnitude decreases from \(|P|\) down to zero.)

In this case, the radial stress is the out-of-plane stress and the hoop stress is the in-plane stress. One might think that plane stress conditions apply only to the outer surface of the tank because that is the only place where the radial out-of-plane stress is truly zero. Although the radial stress is zero only on the outer surface, the value is always negligible compared to the hoop stress, because \(R/t >> 1\). And it is for this reason that plane stress conditions remain applicable.


Hooke's Law

The key impact of plane stress and strain assumptions is on the interaction of the three normal stresses and strains. In order to see this, it is necessary to be familiar with Hooke's Law, though only for normal stresses and strains, not shears. Recall Hooke's Law can be summarized in a single tensor equation.

\[ \epsilon_{ij} = {1 \over E} \left[ (1 + \nu) \sigma_{ij} - \nu \; \delta_{ij} \; \sigma_{kk} \right] \]
And inverted to obtain

\[ \sigma_{ij} = {E \over (1 + \nu)} \left[ \epsilon_{ij} + { \nu \over (1 - 2 \nu)} \delta_{ij} \epsilon_{kk} \right] \]
Much info on Hooke's Law can be found at: www.continuummechanics.org/hookeslaw.html. For those not familiar with tensor notation, the equations can be written out brute force as shown below. The left column shows strain as a function of stress. The right column shows stress as a function of strain. Again, shears can still be present. But they are not the focus here and are therefore being ignored for the moment.

\[ \epsilon_{xx} = {1 \over E} \left[ \sigma_{xx} - \nu \; (\sigma_{yy} + \sigma_{zz}) \right] \qquad \qquad \sigma_{xx} = {E \over (1 + \nu)} \left[ \epsilon_{xx} + { \nu \over (1 - 2 \nu)} (\epsilon_{xx}+\epsilon_{yy}+\epsilon_{zz}) \right] \] \[ \epsilon_{yy} = {1 \over E} \left[ \sigma_{yy} - \nu \; (\sigma_{xx} + \sigma_{zz}) \right] \qquad \qquad \sigma_{yy} = {E \over (1 + \nu)} \left[ \epsilon_{yy} + { \nu \over (1 - 2 \nu)} (\epsilon_{xx}+\epsilon_{yy}+\epsilon_{zz}) \right] \] \[ \epsilon_{zz} = {1 \over E} \left[ \sigma_{zz} - \nu \; (\sigma_{xx} + \sigma_{yy}) \right] \qquad \qquad \sigma_{zz} = {E \over (1 + \nu)} \left[ \epsilon_{zz} + { \nu \over (1 - 2 \nu)} (\epsilon_{xx}+\epsilon_{yy}+\epsilon_{zz}) \right] \]

Uniaxial Tension

For reference, simple uniaxial tension involves setting \(\sigma_{yy} = \sigma_{zz} = 0\). This leaves

\[ \begin{eqnarray} \epsilon_{xx} & = & {\sigma_{xx} \over E} \qquad \qquad \qquad & \sigma_{xx} & = & E \epsilon_{xx} \\ \\ \epsilon_{yy} & = & - \nu \left( {\sigma_{xx} \over E} \right) \qquad \qquad \qquad & \sigma_{yy} & = & 0 \\ \\ \epsilon_{zz} & = & - \nu \left( {\sigma_{xx} \over E} \right) \qquad \qquad \qquad & \sigma_{zz} & = & 0 \end{eqnarray} \]
Note that \(\epsilon_{yy}\) and \(\epsilon_{zz}\) are not zero even though both \(\sigma_{yy}\) and \(\sigma_{zz}\) are.

Plane Stress

Implementation of plane stress and strain analyses involves setting certain terms in the above equations to zero. For the case of plane stress, \(\sigma_{zz} = 0\), and the equations for strain in terms of stress reduce to

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left( \sigma_{xx} - \nu \sigma_{yy} \right) \\ \\ \epsilon_{yy} & = & {1 \over E} \left( \sigma_{yy} - \nu \sigma_{xx} \right) \\ \\ \epsilon_{zz} & = & {- \nu \over E} \left( \sigma_{xx} + \sigma_{yy} \right) \end{eqnarray} \]
The first two equations give \(\epsilon_{xx}\) and \(\epsilon_{yy}\) in terms of \(\sigma_{xx}\) and \(\sigma_{yy}\). They can be thought of as two equations with two unknowns that need to be inverted to obtain \(\sigma_{xx}\) and \(\sigma_{yy}\) in terms of \(\epsilon_{xx}\) and \(\epsilon_{yy}\). This can be visualized as

\[ \left[ \matrix{ \;\;1 & -\nu \\ -\nu & \;\;1} \right] \left\{ \matrix{ \sigma_{xx} \\ \sigma_{yy} } \right\} = \left\{ \matrix{ E \, \epsilon_{xx} \\ E \, \epsilon_{yy} } \right\} \]
and inverted to obtain \(\sigma_{xx}\) and \(\sigma_{yy}\) in terms of \(\epsilon_{xx}\) and \(\epsilon_{yy}\). The final equations for plane stress loading are

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left( \sigma_{xx} - \nu \sigma_{yy} \right) \qquad \qquad & \sigma_{xx} = {E \over 1 - \nu^2} \left( \epsilon_{xx} + \nu \epsilon_{yy} \right) \\ \\ \epsilon_{yy} & = & {1 \over E} \left( \sigma_{yy} - \nu \sigma_{xx} \right) \qquad \qquad & \sigma_{yy} = {E \over 1 - \nu^2} \left( \epsilon_{yy} + \nu \epsilon_{xx} \right) \\ \\ \epsilon_{zz} & = & {- \nu \over E} \left( \sigma_{xx} + \sigma_{yy} \right) \qquad \qquad & \sigma_{zz} = 0 \end{eqnarray} \]
Note that \(\epsilon_{zz} \ne 0\) even though \(\sigma_{zz} = 0\). This is the classic Poisson effect that is the source of much confusion when working with Hooke's Law. Also, the only important shear term in this case is \(\tau_{xy} = G \gamma_{xy}\).

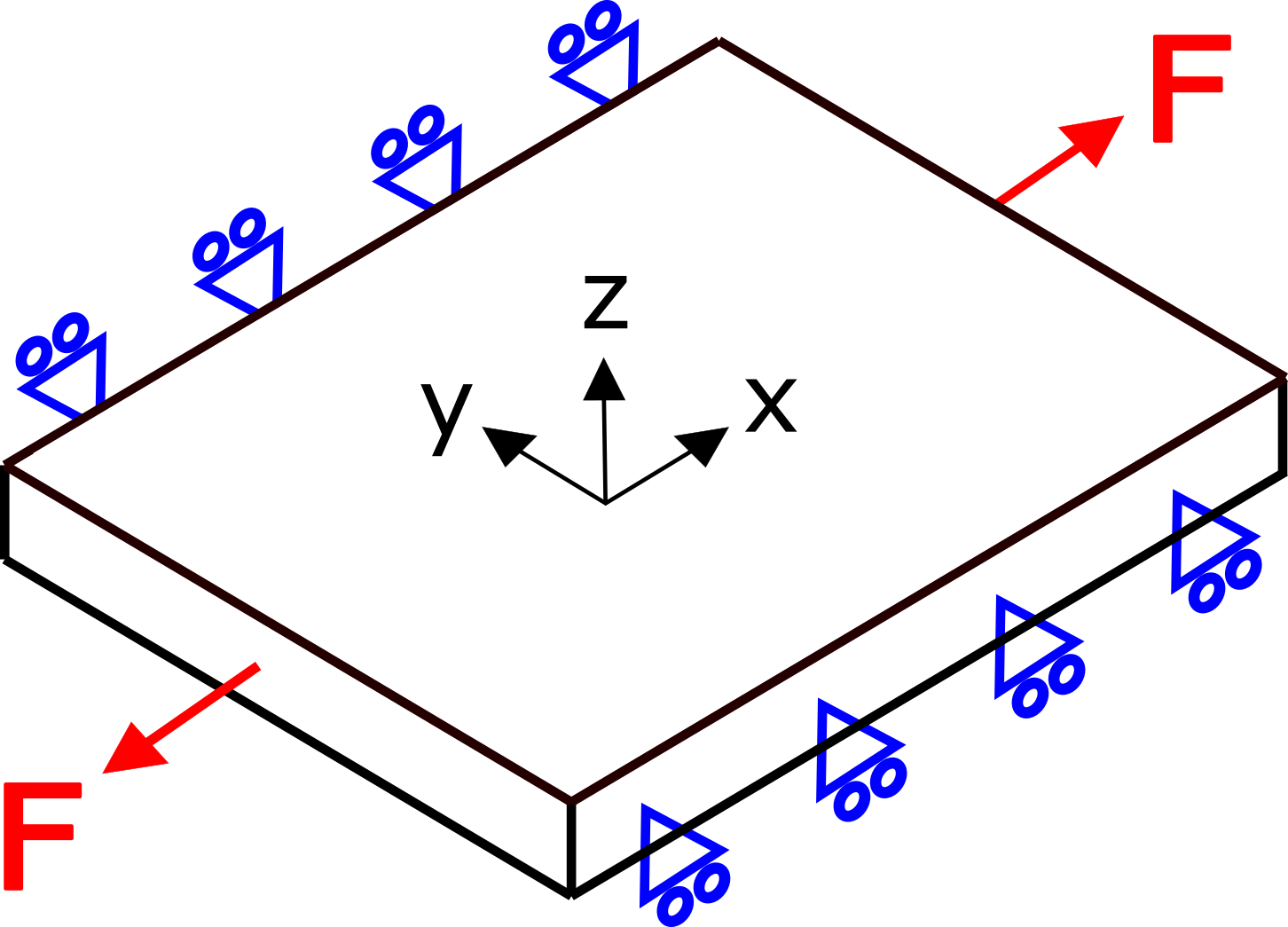

Laterally Constrained Sheet

A laterally constrained sheet is an excellent candidate for plane stress analysis. The sheet may be constrained because its sides are attached to underlying structure that does not move laterally as the sheet is pulled. It is plane stress because \(\sigma_{zz} = 0\).

For this case, it is clear that \(\epsilon_{yy} = 0\) in addition to the fact that \(\sigma_{zz} = 0\). This is easily inserted into the above equations to obtain

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left( \sigma_{xx} - \nu \sigma_{yy} \right) \qquad \qquad & \sigma_{xx} = {E \over 1 - \nu^2} \left( \epsilon_{xx} \right) \\ \\ \epsilon_{yy} & = & 0 \qquad \qquad & \sigma_{yy} = {E \over 1 - \nu^2} \left( \nu \epsilon_{xx} \right) = \nu \sigma_{xx} \\ \\ \epsilon_{zz} & = & {- \nu \over E} \left( \sigma_{xx} + \sigma_{yy} \right) \qquad \qquad & \sigma_{zz} = 0 \end{eqnarray} \]
Of the six equations here, the most interesting are

\[ \sigma_{xx} = {E \over 1 - \nu^2} \left( \epsilon_{xx} \right) \qquad \quad \text{and} \qquad \qquad \sigma_{yy} = \nu \sigma_{xx} \]
And \((1-\nu^2)\) is unique in the equation relating \(\sigma_{xx}\) to \(\epsilon_{xx}\). It is the key difference between the laterally constrained plate in tension and an object in conventional uniaxial tension. For many metals, \(\nu \approx 1/3\), and the plate will effectively be 12.5% stiffer in tension/compression due to the lateral constraint than if it were in uniaxial tension.

It is important to understand that one could have just as easily started from the original Hooke's Law equations and still arrived at this same point. The Plane Stress equations make the process easier by providing a starting point that is further down stream.

The following chart compares stress-strain curves of a laterally constrained sheet of aluminum to a bar loaded in uniaxial tension. The separation between the blue and red curves is the 12.5% difference due to the \((1-\nu^2)\) term in the denominator of the constrained sheet \(\sigma_{xx}\) equation.


Plane Strain

For the case of plane strain, \(\epsilon_{zz} = 0\), and the equations for Hooke's Law can be simplified to

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left[ (1 - \nu^2) \sigma_{xx} - \nu (1 + \nu) \sigma_{yy} \right] \qquad \qquad & \sigma_{xx} = {E \over (1 + \nu)(1 - 2\nu)} \left[ (1 - \nu) \epsilon_{xx} + \nu \epsilon_{yy} \right] \\ \\ \epsilon_{yy} & = & {1 \over E} \left[ (1 - \nu^2) \sigma_{yy} - \nu (1 + \nu) \sigma_{xx} \right] \qquad \qquad & \sigma_{yy} = {E \over (1 + \nu)(1 - 2\nu)} \left[ (1 - \nu) \epsilon_{yy} + \nu \epsilon_{xx} \right] \\ \\ \epsilon_{zz} & = & 0 \qquad \qquad & \sigma_{zz} = \nu ( \sigma_{xx} + \sigma_{yy} ) \end{eqnarray} \]
This time, \(\epsilon_{zz} = 0\) even though \(\sigma_{zz} \ne 0\); the exact opposite case of plane stress in which \(\epsilon_{zz} \ne 0\) even though \(\sigma_{zz} = 0\). And as always, \(\tau_{xy} = G \gamma_{xy}\).


Comparisons for the Case of \(\nu = 1/3\)

Here's a comparison of the stress-strain equations with \(\nu = 1/3\), a common value of Poisson's Ratio for metals. Note how the coefficients change values depending on the situation.

Hooke's Law

\[ \epsilon_{xx} = {1 \over E} \left[ \sigma_{xx} - {1 \over 3} ( \sigma_{yy} + \sigma_{zz} ) \right] \qquad \qquad \sigma_{xx} = E \left[ {3 \over 2} \epsilon_{xx} + {3 \over 4} (\epsilon_{yy}+\epsilon_{zz}) \right] \] \[ \epsilon_{yy} = {1 \over E} \left[ \sigma_{yy} - {1 \over 3} ( \sigma_{xx} + \sigma_{zz} ) \right] \qquad \qquad \sigma_{yy} = E \left[ {3 \over 2} \epsilon_{yy} + {3 \over 4} (\epsilon_{xx}+\epsilon_{zz}) \right] \] \[ \epsilon_{zz} = {1 \over E} \left[ \sigma_{zz} - {1 \over 3} ( \sigma_{xx} + \sigma_{yy} ) \right] \qquad \qquad \sigma_{zz} = E \left[ {3 \over 2} \epsilon_{zz} + {3 \over 4} (\epsilon_{xx}+\epsilon_{yy}) \right] \]

Plane Stress ( \(\sigma_{zz} = 0\) )

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left( \sigma_{xx} - {1 \over 3} \sigma_{yy} \right) \qquad \qquad & \sigma_{xx} = E \left( {9 \over 8} \epsilon_{xx} + {3 \over 8} \epsilon_{yy} \right) \\ \\ \epsilon_{yy} & = & {1 \over E} \left( \sigma_{yy} - {1 \over 3} \sigma_{xx} \right) \qquad \qquad & \sigma_{yy} = E \left( {9 \over 8} \epsilon_{yy} + {3 \over 8} \epsilon_{xx} \right) \\ \\ \epsilon_{zz} & = & {-1 \over \;\; 3 E} \left( \sigma_{xx} + \sigma_{yy} \right) \qquad \qquad & \sigma_{zz} = 0 \end{eqnarray} \]

Plane Strain ( \(\epsilon_{zz} = 0\) )

\[ \begin{eqnarray} \epsilon_{xx} & = & {1 \over E} \left[ {8 \over 9} \sigma_{xx} - {4 \over 9} \sigma_{yy} \right] \qquad \qquad & \sigma_{xx} = E \left[ {3 \over 2} \epsilon_{xx} + {3 \over 4} \epsilon_{yy} \right] \\ \\ \epsilon_{yy} & = & {1 \over E} \left[ {8 \over 9} \sigma_{yy} - {4 \over 9} \sigma_{xx} \right] \qquad \qquad & \sigma_{yy} = E \left[ {3 \over 2} \epsilon_{yy} + {3 \over 4} \epsilon_{xx} \right] \\ \\ \epsilon_{zz} & = & 0 \qquad \qquad & \sigma_{zz} = {1 \over 3} ( \sigma_{xx} + \sigma_{yy} ) \end{eqnarray} \]

Uniaxial Tension ( \(\sigma_{yy} = \sigma_{zz} = 0\) )

\[ \sigma_{xx} = E \epsilon_{xx} \]
